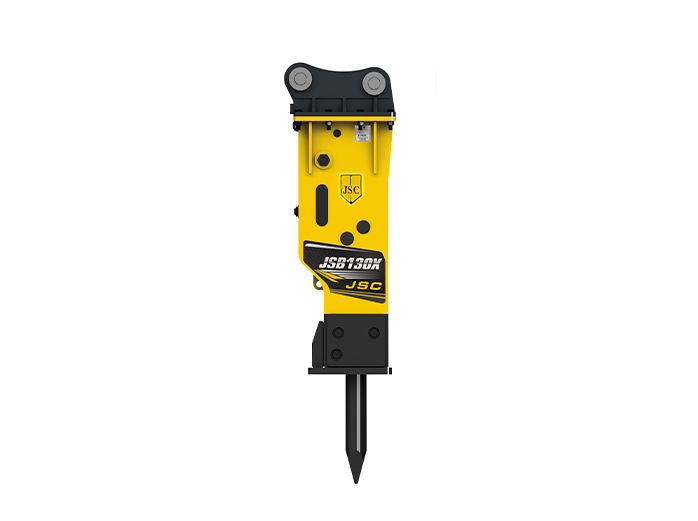

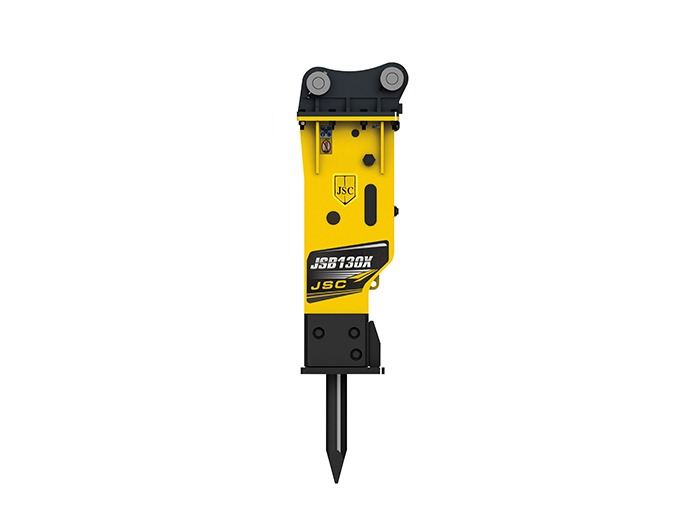

JSB SERIES

Key Features

  • Anti-Blank Firing (ABF) System: Prevents the breaker from firing when there is no rock/concrete resistance, protecting the piston and tools.
  • High Impact Energy: Combines nitrogen gas and hydraulic energy for powerful strength.Simple Design: Engineered with few moving parts (mainly valve and piston) for reliability.Impact Control
  • (IC) System: Allows for effective breaking even on soft rock.Durability Enhancements: Features reinforced through-bolts and high-strength, abrasion-resistant steel construction.

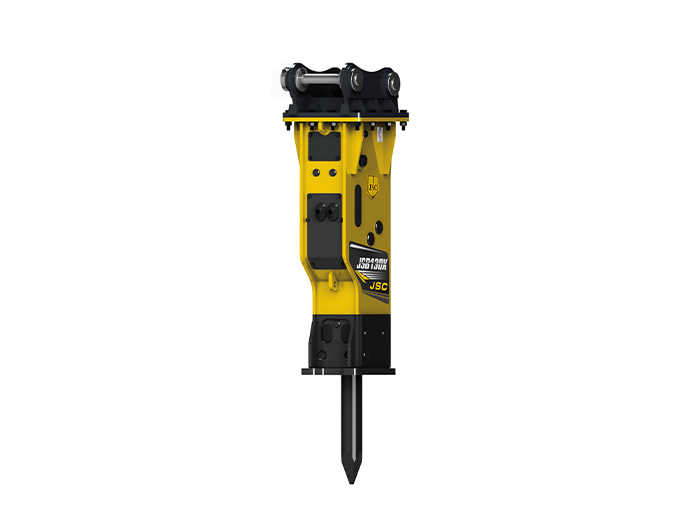

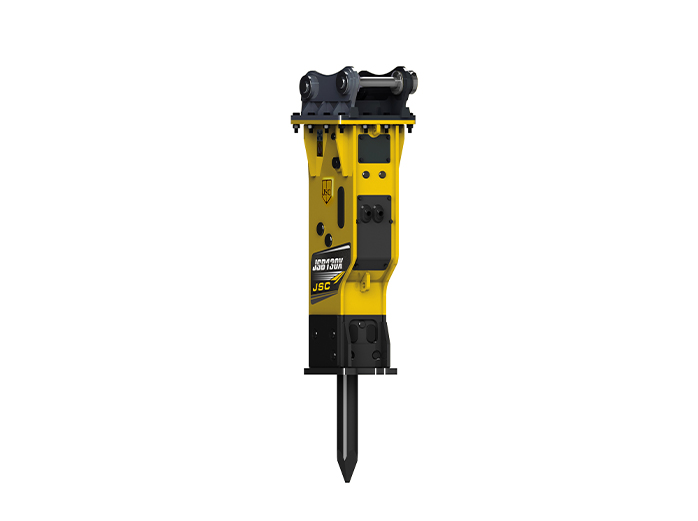

  • Noise/Vibration Reduction: Silence-type models use urethane and MIC plates to suppress noise and vibration.

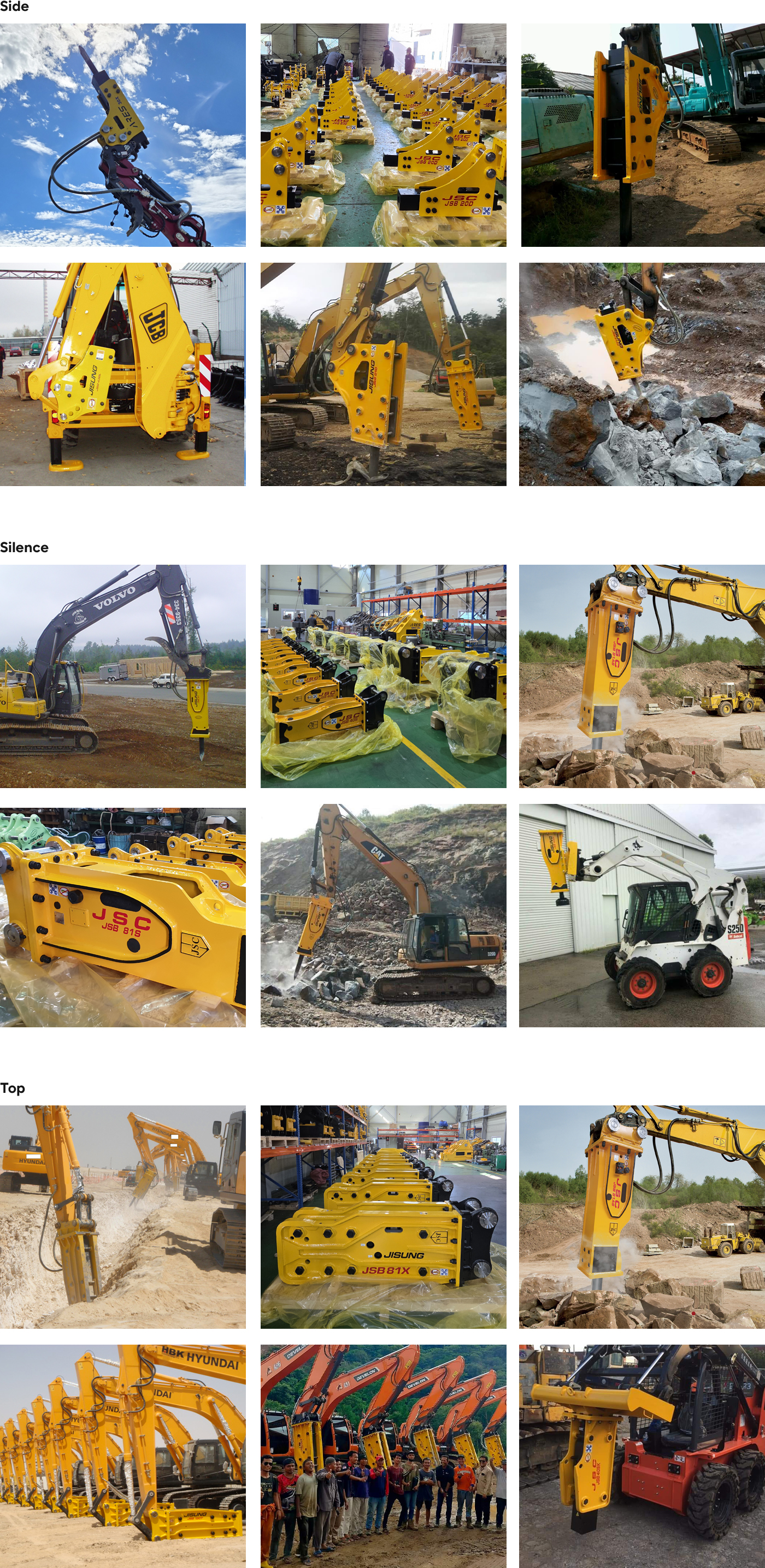

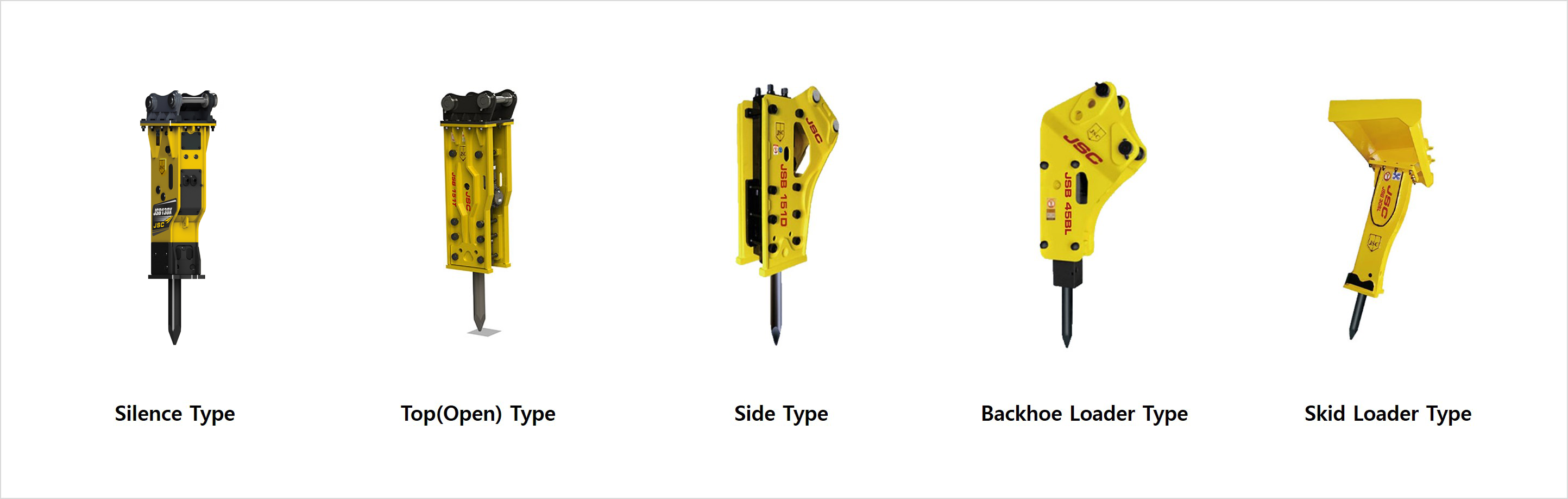

  • Versatile Lineup: Available in Top, Side, and Box types, covering machines from 0.7 to 50 tons.

Benefits

  • Reduced Operating Expenses & Maintenance: Up to 30% fewer parts than competitors means lower maintenance costs.
  • Increased Uptime & Lifespan: ABF technology and robust design extend equipment life and reduce downtime.
  • Higher Productivity: High-performance motor and powerful impact ensure efficient demolition and excavation.
  • Easier Maintenance: Simple design allows for easier, low-cost maintenance and quick serviceability.
INQUIRY
SPECIFICATION

INWARD VALVE SYSTEM TYPE SMALL MEDIUM LARGE
JSB10 JSB20 JSB30 JSB35 JSB40 JSB43 JSB45X JSB50X JSB60X JSB70X JSB81X JSB100X JSB121X JSB130X JSB151X
Operation Weight kg Silence 102 126 152 224 295 375 571 861 1296 1500 1825 2071 2635 2850 3990
Top 72 92 150 250 275 295 500 795 1250 1450 1780 2100 2700 2995 4100
Side 72 92 120 220 250 380 510 765 1255 1350 1770 2114 2440 2501 3789
Backhoe 　 270 400 550 　
Skid Top 　 180 280 320 　
Selection of Machine ton 0.8~2.5 1.2~3.0 2.5~4.5 3.0~5.5 4.0~7.0 6~9 7~14 11~16 15~18 18~21 18~26 25~30 28~35 36~40 42~55
Relief Setting Pressure bar 180~200 180~200 180~200 180~200 180~200 180~200 180~200 200~220 200~220 200~220 200~220 200~220 200~220 210~230 210~230
Required oil / Flow Range l/min 15~25 20~30 25~50 30~60 40~70 40~90 60~100 80~110 90~120 100~150 120~180 150~210 180~240 200~260 210~290
Operating Pressure bar 90~120 90~120 90~120 100~130 110~140 110~140 130~160 150~170 150~170 160~180
Impact Rate bpm 800~1,400 700~1,200 600~1,100 500~1,000 500~900 400~800 400~800 350~700 350~650 350~600 350~500  300~450 300~450 250~400 200~350
Rod/Chisel mm 40 45 53 60 68 75 85 100 125 135 140 150 155 155 175
Impact Energy joule 203 290 320 550 690 900 1300 2100 2900 3550 4200 5200 6500 9000 12000
Back Head Gas Pressure bar (psi) 16 (223)

*Specifications and features are subject to change without prior notification to better improvement in quality.
