ARES SERIES

Features/benefits of the Ares Series

  •  Valve exterior stable strike
  • Powerful strike to increase work efficiency

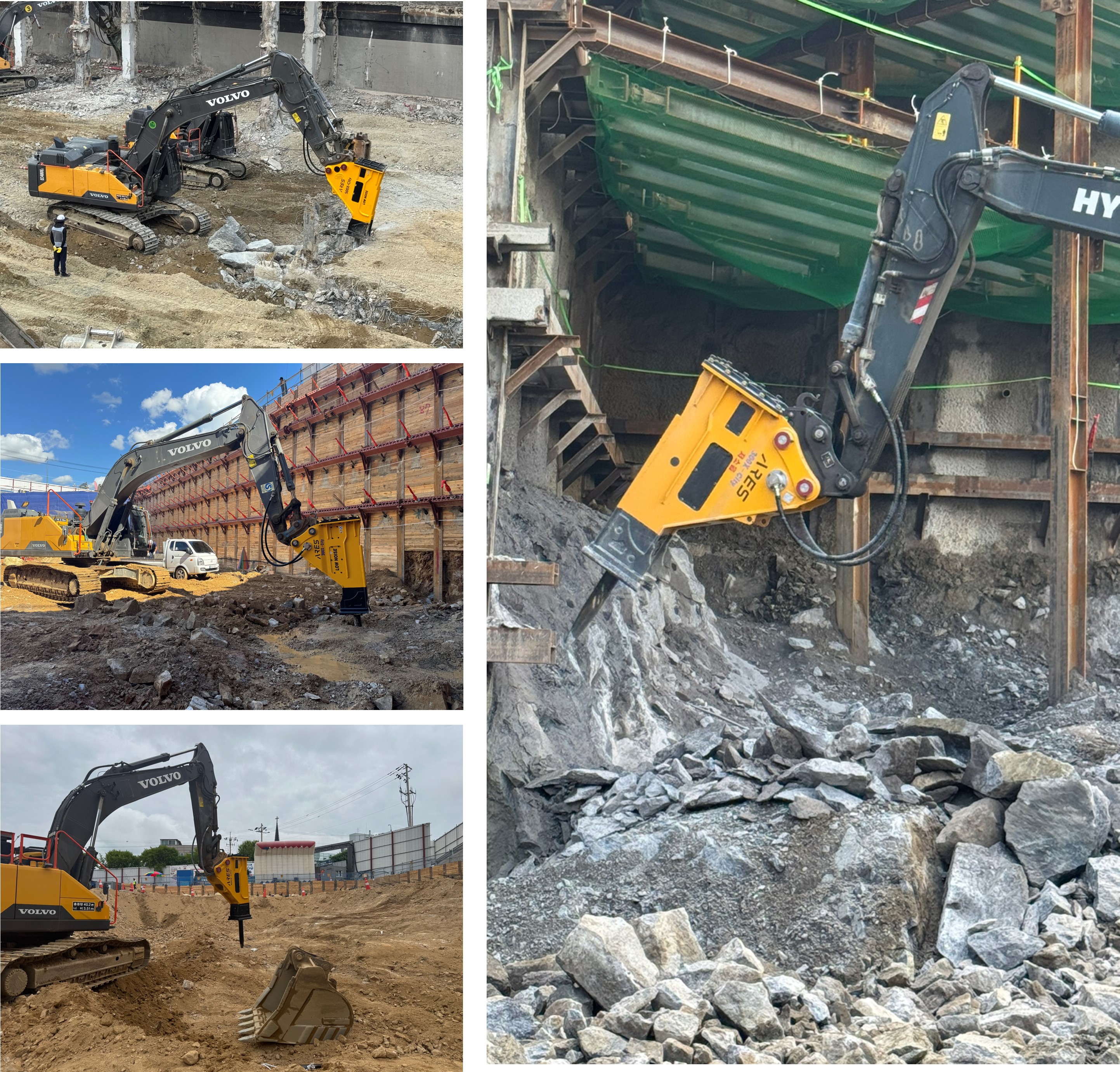

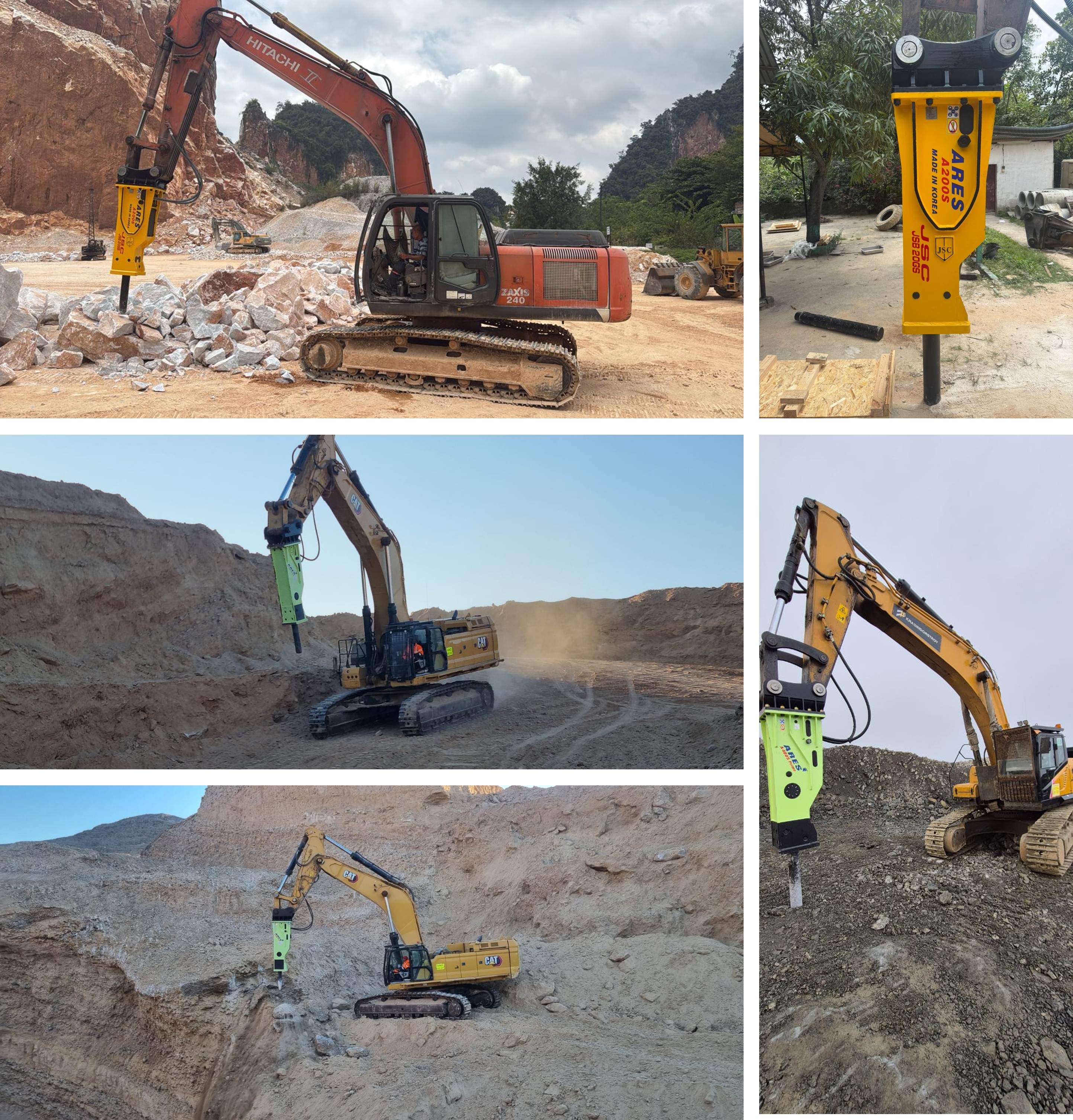

  • Suitable for mining, quarry, and large civil engineering projects

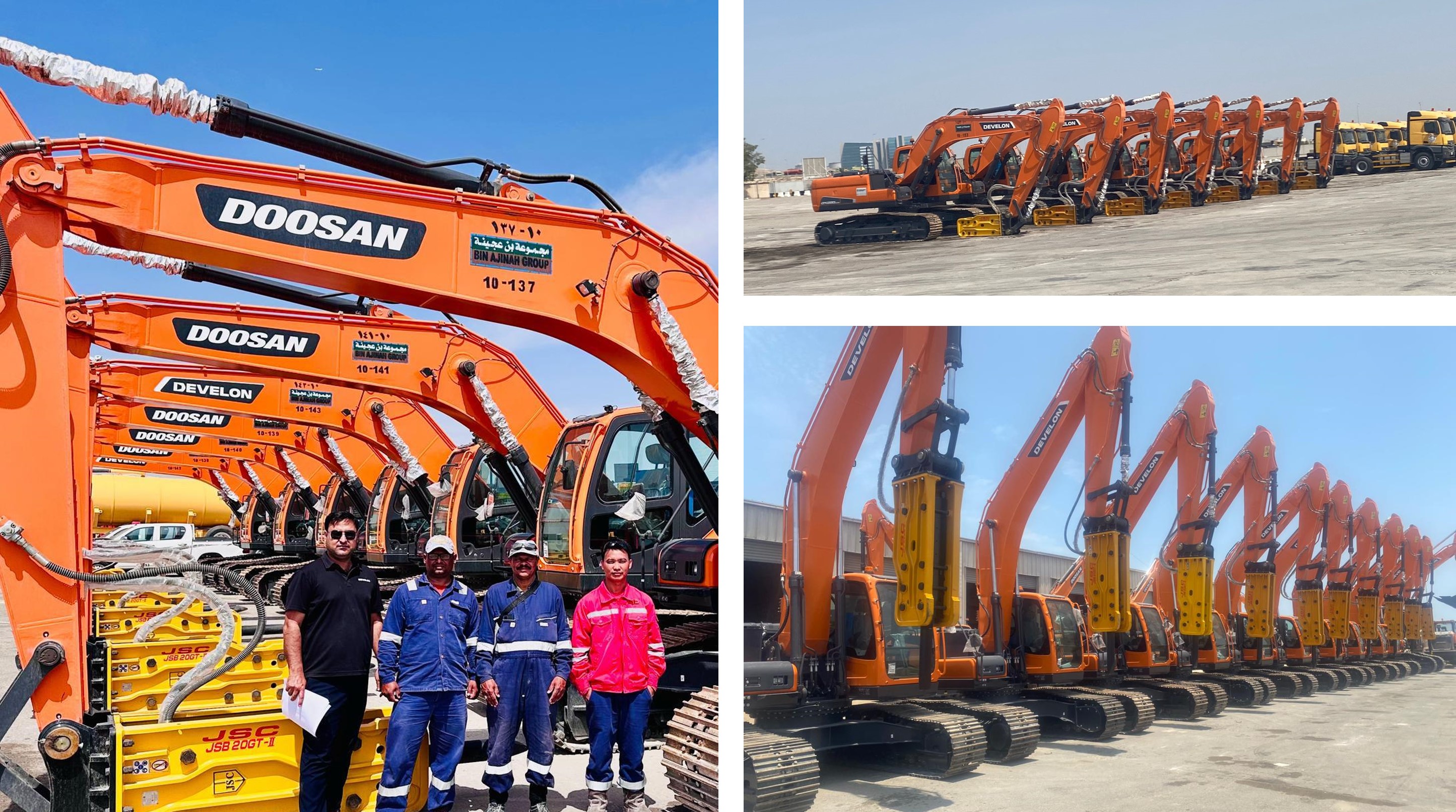

  •  A200,300,400 outstanding performance in the Middle East
  • Suitable for A460,550,750,1000,1200,1500 mega-projects
INQUIRY
SPECIFICATION

　
OUTWARD VALVE SYSTEM (Hydraulic & High Gas) TYPE MEDIUM LARGE EXTRA-LARGE SUPER EXTRA-LARGE
A200 A300 A400 A460 A550 A750 A1000 A1200 A1500
Operation Weight kg Silence 1840 2540 3110 3800 5200 6200 8200 9400 12000
Top 1740 2420 3020 4100 5500 6500 8500 9000 11000
Side 1800 2530 2900 3540 4740 5500 7500 8500 11000
Side Silence NONE 4100 5400 6400 8500 9500 11500
Selection of Machine ton 18~22 27~30 35~40 40~50 46~65 65~85 75~90 85~100 95~120
Relief Setting Pressure bar 190~210 230~250 230~250
Required oil / Flow Range l/min 130~150 150~180 190~250 190~230 220~270 220~290 290~350 360~430 400~500
Operating Pressure bar 160~180 180~210 180~210 180~210 180~210 200~220 200~220
Impact Rate bpm 400~800 350~750 250~500 200~350 200~300 200~250 180~200 150~180 120~150
Rod/Chisel mm 135 150 160 175 185 195 210 230 245
Impact Energy joule 3588 7000 9900 14500 16500 18500 35000 45000 55000
Back Head Gas Pressure bar 6 6 6 16~18 16~18 16~18 16~18 16~18 16~18

*Specifications and features are subject to change without prior notification to better improvement in quality.

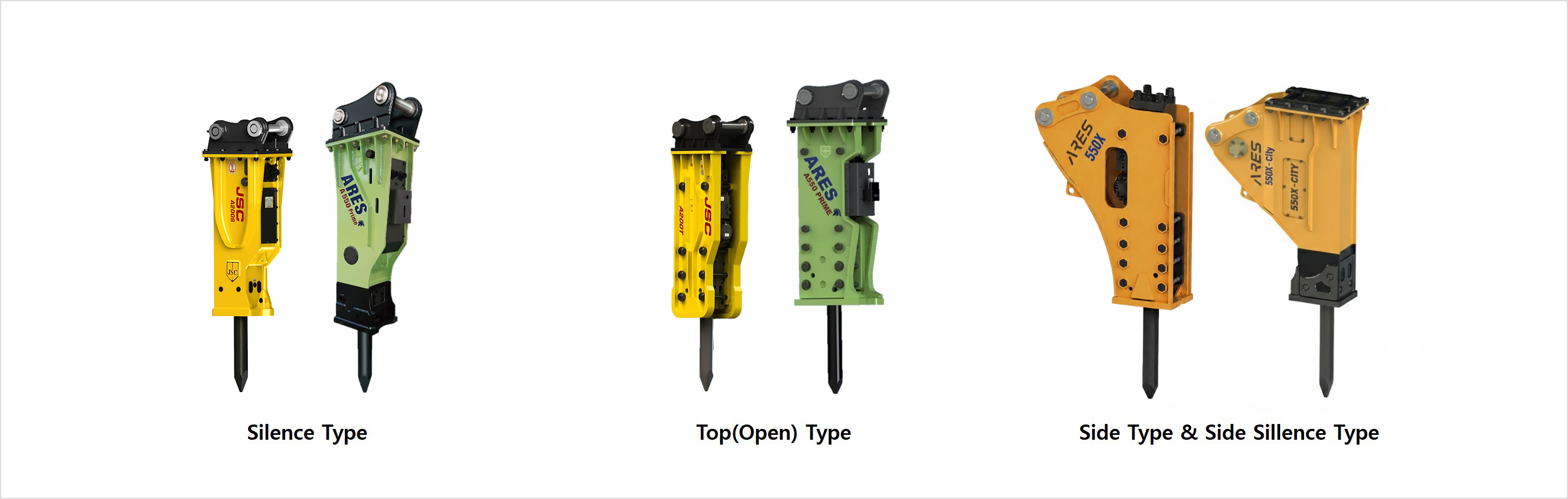

1.SILENCE TYPE

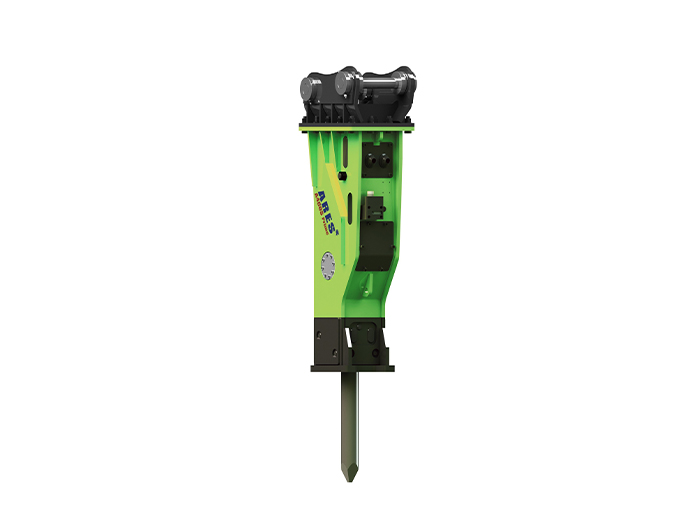

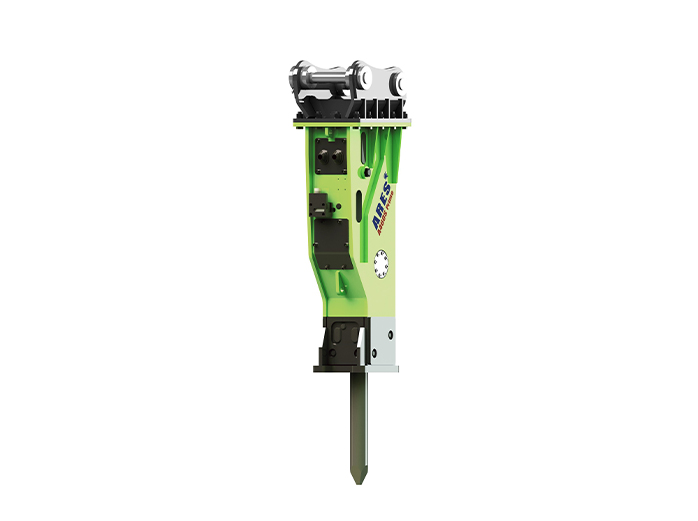

2.TOP TYPE

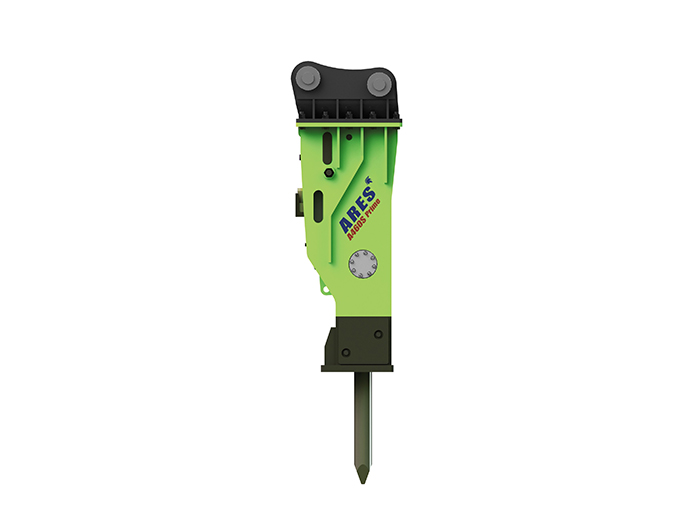

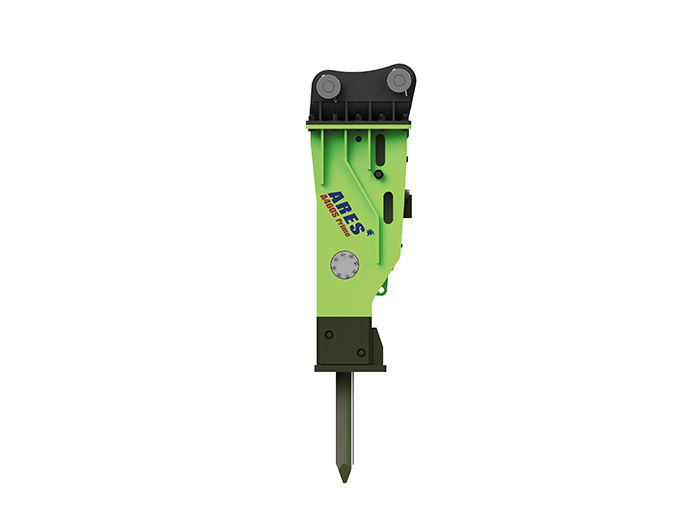

3.SIDE AND SIDE SILENCE TYPE
