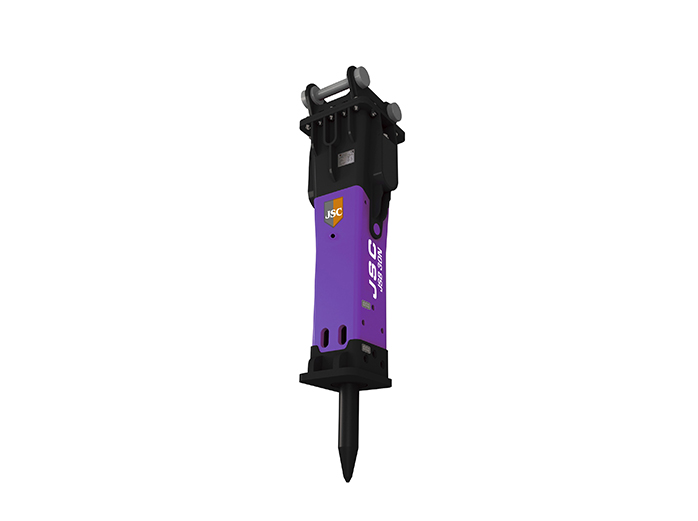

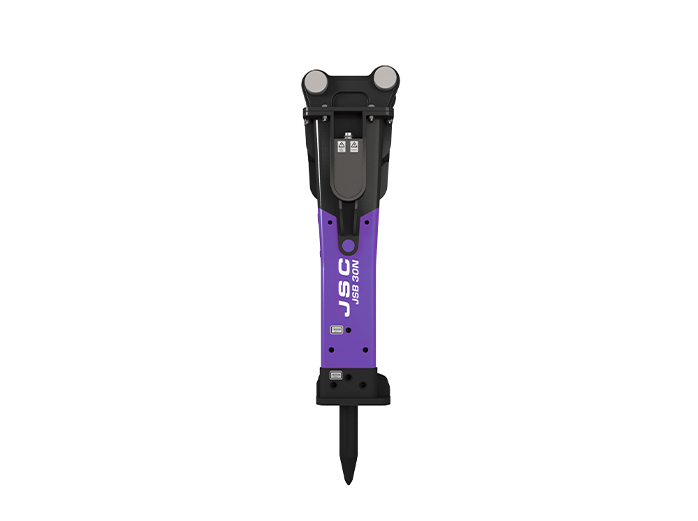

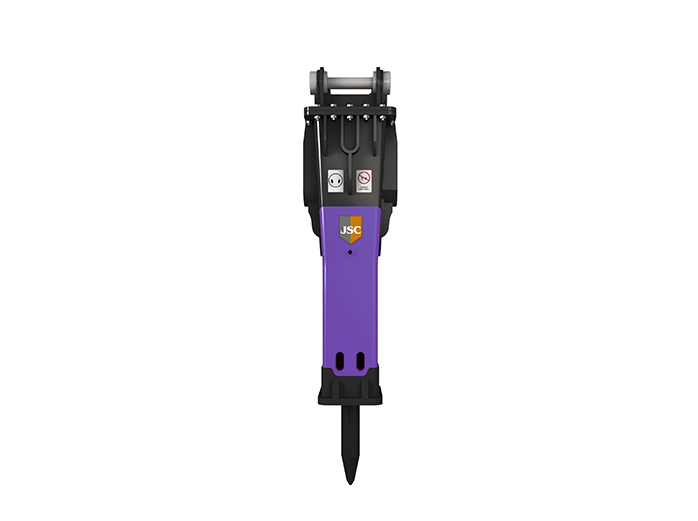

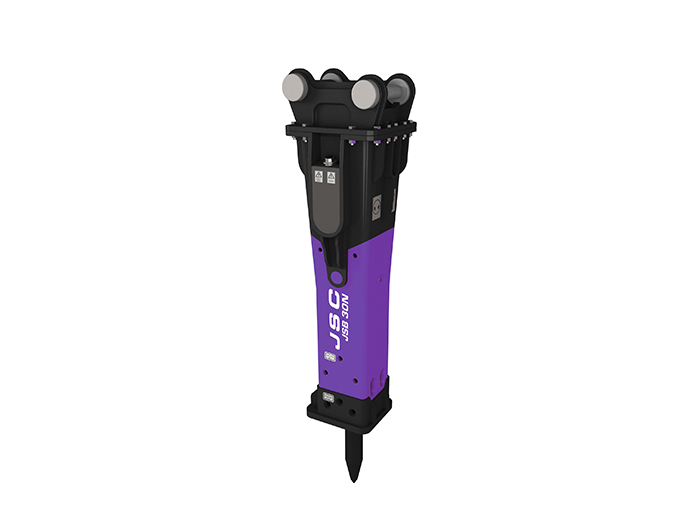

N SERIES

Fully Hydraulic type Breaker

  • Top mounted Accumulator helps to accept for large range of oil flow and assist with power stroke and protect against hyd. ImpactHigh Technology of Control valve can block any damage from the high impact energy to the carrier.
  • Optimized technical design cause easy operation and long life term with low maintenance cost.
  • Fully blocked housing design is perfect for all kinds of job site and at the same time, slip fit lower bushing is easy to make field maintenance.
  • Piston and Cylinder are designed to convert the kinetic energy into hammering energy after hitting tool and transmit to tool for more rock breaking at site.
INQUIRY
SPECIFICATION
Specification / Model Unit JSB20N JSB30N JSB40N JSB50N JSB70N
Working weight kg 1,750 2,300 3,200 3,900 5,500
Impact rate(Shot/Long) bpm 370~550 370~560 370~540 480~670/370~520 410~570/320~430
Operating pressure bar 160~180 160~180 160~180 160~180 160~180
Pressure relief max. bar 200 200 210 210 210
Required oil flow l/min 120~180 160~230 180~270 230~350 280~380
Back pressure max bar 5~10 5~10 5~10 5~10 5~10
Chisel diameter mm 135 150 160 170 190
Max. allowed oil temperature ℃ -20~+80(℃) -20+80(℃) -20+80(℃) -20+80(℃) -20+80(℃)
Optimum oil temperature ℃ +40~+60(℃) +40~+60(℃) +40~+60(℃) +40~+60(℃) +40~+60(℃)
Oil viscosity at perating temp. cst 30~60(cSt) 30~60(cSt) 30~60(cSt) 30~60(cSt) 30~60(cSt)
Carrier weight ton 20~30 25~35 35~45 45~55 55~80

*Specifications and features are subject to change without prior notification to better improvement in quality.
