Demoliton Grapples

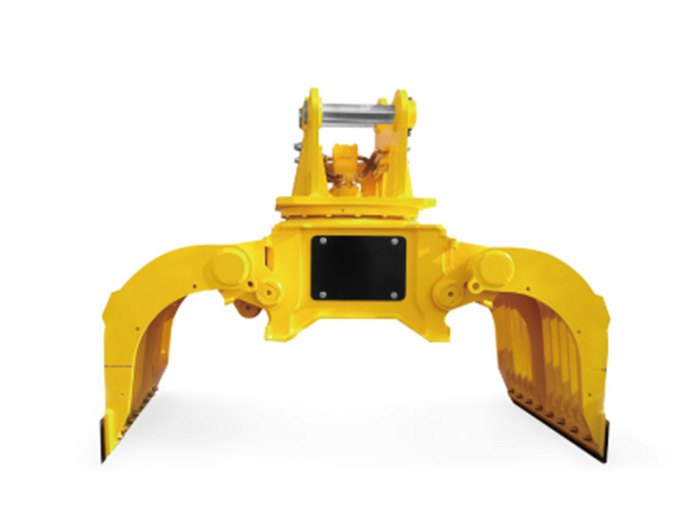

Demolition Grapple Series

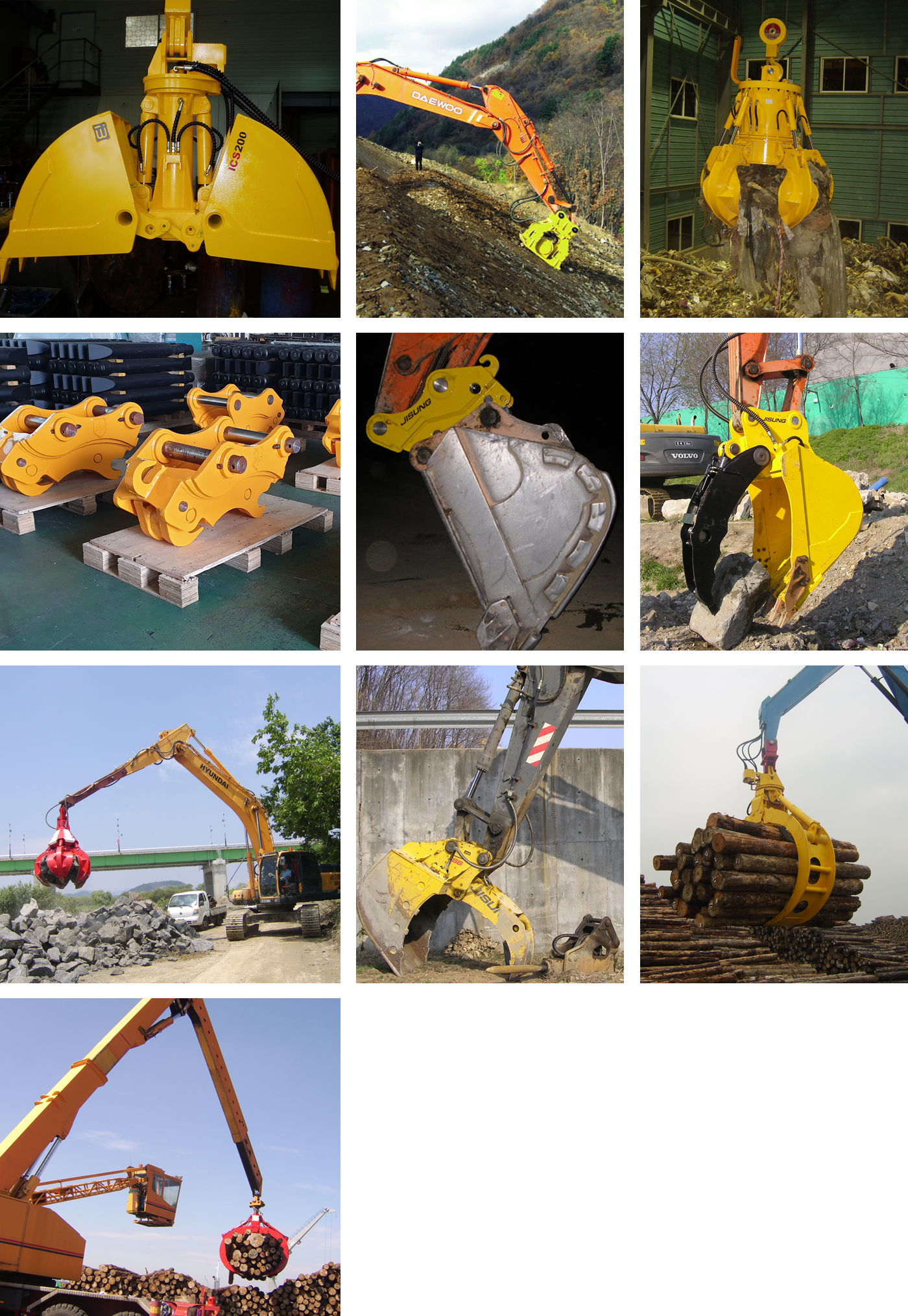

Clearing, demolition Gardage disposal
Rock qusposal Pipes & scrap iron & logs

INQUIRY

SPECIFICATION

Contents/Model		Unit	RSM
Contents/Model		Unit	JSD 100	JSD 200	JSD 300	JSD 400	JSD 500
WEIGHT		kg	250	295	480	680	950
MIN		mm	652	652	707	774	818
MAX		mm	1,105	1,105	1,300	1,500	1,700
H		mm	415	415	460	531	665
H1		mm	350	350	451	510	532
L		mm	400	450	550	700	880
LIFTING		kg	2,000	3,000	4,000	5,000	6,000
CYLINDER	MAX. WORKING PRESSURE	bar	210	210	250	250	250
CYLINDER	REQUIRE OIL FLOW	lpm	30~35	30~35	40~60	40~60	40~60
ROTATING MOROT	MAX. WORKING PRESSURE	bar	100	100	120	120	120
ROTATING MOROT	REQUIRE OIL FLOW	lpm	10~20	10~20	20~30	20~30	20~30
SUITABLE EXCAVATOR		ton	2~3	3~5	5~7	7~10	11~13

Contents/Model		Unit	RSM
Contents/Model		Unit	JSD 600	JSD 800	JSD 1000	JSD 1500	JSD 2000
WEIGHT		kg	1,100	1,450	1,850	2,300	2,600
MIN		mm	863	883	982	1,060	1,170
MAX		mm	1,886	1,923	2,082	2,120	2,250
H		mm	776	905	956	1,006	1,100
H1		mm	567	744	770	794	830
L		mm	900	1,100	1,200	1,300	1,400
LIFTING		kg	7,000	8,100	10,200	14,100	19,800
CYLINDER	MAX. WORKING PRESSURE	bar	280	280	300	320	320
CYLINDER	REQUIRE OIL FLOW	lpm	40~80	40~80	60~100	80~150	80~150
ROTATING MOROT	MAX. WORKING PRESSURE	bar	140	140	140	140	140
ROTATING MOROT	REQUIRE OIL FLOW	lpm	20~40	20~40	20~40	20~40	20~40
SUITABLE EXCAVATOR		ton	13~18	20~25	28~35	36~42	43~47
